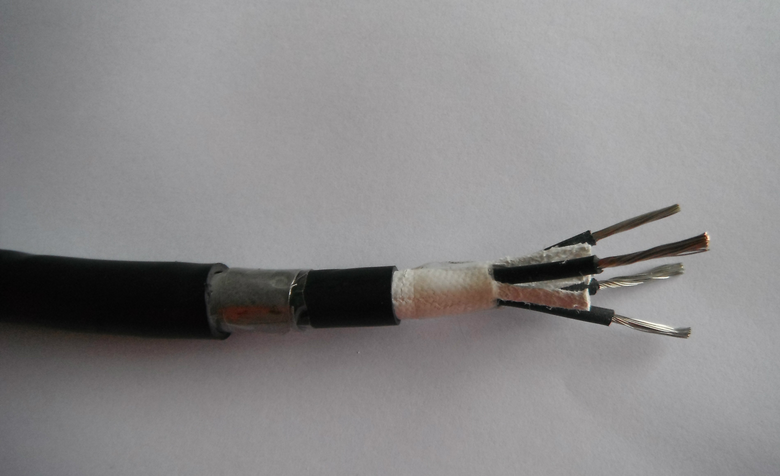

太陽能光伏電纜GF-WDZX(N)EE(R)P1、光伏電纜、太陽能光伏發電專用電纜

1.    標準Standard

本產品按德國標準2Pfg 1169/08.2007、CEEIA B218-2012和Q/321084KKQ13-2015等標準生產。

This product is produced according to the standard 1169/08.2007 2Pfg 、CEEIA B218-2012and Q/321084KKQ13-2015.

2.     用途 Applications

適用于額定電壓直流1.8kV直流組件與組件、組串之間、直流配電箱至逆變器之間的連接。電纜具有耐臭氧、耐酸堿、抗鹽霧和耐環境氣候等性能。The products are suitable for connection among components, among component assemblies and connection between power distribution box and inverter at rated voltage of DC 1.8 kV. The cable has resistance to ozone, acid and alkali resistance, salt fog resistance and adaptability to climate and other properties.

3.    型號、名稱Type and Description

型       號：GF-WDZX(N)EE(R)P1

額定電壓kV：DC：1.8  AC：0.6/1kv

名       稱：光伏發電系統用交流(直流)傳輸電力電纜AC(DC)  transmission power cable used for Photovoltaic power generation system http://www.unitedco.cn

用途：本產品適用于交流額定電壓0.6/1.0kV、直流1800V及以下逆變器至升壓變壓器、升壓變壓器至配電裝置、配電裝置至電網的安裝連接。本產品有鋼帶、鋼絲鎧裝、非磁性金屬帶、非磁性金屬絲鎧裝等，具有抗側壓、抗拉伸、載流量大、耐臭氧、耐酸堿、抗鹽霧和耐環境氣候要求的特點。The product is suitable for installation connection between the inverter and step-up transformer, between step-up transformer and power distribution equipment, also between power distribution equipment and the grid at the AC rated voltage of 0.6/1.0kV , DC1800V or below. This product has the steel belt, steel wire shield, nonmagnetic metal belt, nonmagnetic metal wire shield, etc., with features of lateral pressure resistance, tensile strength, large current-carrying capacity, ozone resistance, acid and alkali resistance, salt fog resistance and adaptability to environmental climate.

4．規格Specifications

導體截面(mm2)：         1.5         2.5         4         6         10         16         25         35

導  體  結  構：        30/0.25     49/0.25     56/0.30    84/0.30    84/0.4     128/0.4    196/0.4     276/0.4

導體  外徑mm：         1.4         1.9        2.5        3.2        4.4        5.4        6.7         7.9

最大導體電阻Ω/km. 20℃：13.7        8.21       5.09       3.08        /           /           /         /

耐壓AC.V/15min：       3000       3000       3000      3000       3000      3000      3000       3000

電纜  外徑mm：        4.6～5.2    5.0～5.6    5.8～6.5   6.8～7.5    8.0～8.6   9.6～10.3  10.6～11.8  11.9～13.0

參考載流量A：           20          28         40        32         /           /           /         /

電纜重量Kg/1000m：     54          69         93        104        /           /           /         /

5．性能 Performance

1) 額定電壓：直流1800V；交流0.6/1kV

Rated voltage: DC 1800V, AC 0.6/1kV

2) 適應的最低環境溫度為-40℃、最高環境溫度為125℃，在120℃的工作溫度下可使用20年。

Minimum permissible ambient temperature of conductor is -40℃ and maximum temperature is 125℃. It can be used for 20 years under the 120℃ operating environment condition.

3) 電纜的彎曲性能優良，最小彎曲半徑為電纜的6倍。

The cable enjoys excellent bending performance and the min. bending radius is 6 times of that of cable.

4) 電纜具有優異的耐酸、堿、油腐蝕能力，試驗結果電纜仍能正常工作。

This cable has excellent resistance to acid, alkaline and oil corrosion and it can still remain normal working after the test.

5) 電纜可抵御惡劣環境和機械沖擊，能耐受高溫、紫外線、風雨、臭氧的侵蝕，其壽命是橡膠電纜的8倍，聚氯乙烯電纜的32倍。

This cable can stand against harsh environment and mechanical compact and has resistance to high temperature, ultraviolet ray, weather and ozone, whose life is 8 times longer than that of rubber cable and 32 times longer than PVC cable.

6）鹵素氣體釋放量試驗：PH≥4.3,電導率≤10us/mm。

Halogen gas emission test: PH≥4.3, conductance≤10us/mm.

7）電纜燃燒無煙量試驗：透光率≥60％。

Smokeless quantity test: light transmittance≥60%.

8）電纜阻燃試驗達到德國標準2Pfg 1169/08.2007中的規定。

Cable flame-retardant test meet the requirements stipulated in 2Pfg 1169/08.2007

9）經特殊處理的電纜護套，有較高的機械強度，電纜可在屋頂結構的銳邊上布線，且能承受一定的壓力、彎折、張力、交叉拉伸載荷及強力沖擊。

Cable sheath that has been provided with special treatment enjoys higher-level mechanical strength, which enables the cable to be laid around the sharp edges of the roof structure and to bear a certain pressure, bending, tension, cross-tensile load and strong
