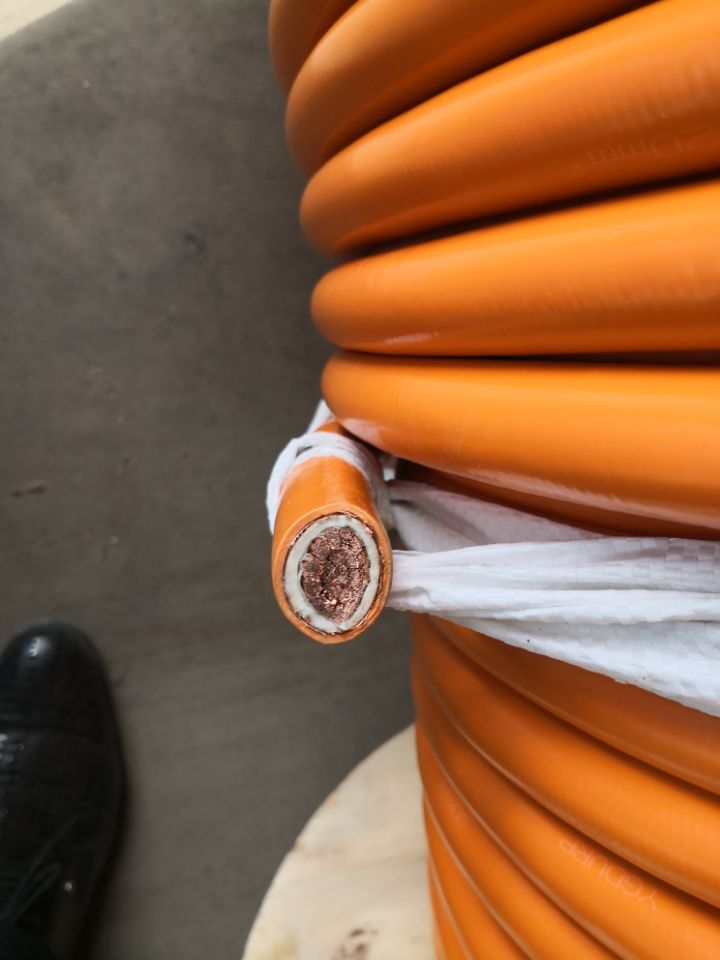

電動汽車充電電纜
電纜常用型號名稱
|
交流產品型號 AC product specification |
直流產品型號 DC product specification |
名稱 name |
|
EV-EF |
EVDC-EF |
乙丙橡膠（或類似合成橡膠）絕緣氯丁橡膠（或類似材料）護套電動汽車傳導充電系統用電纜 Ethylene propylene rubber (or similar synthetic rubber) insulated neoprene rubber(or similar material) sheathed cable for electric vehicle conductive charging system |
|
EV-E90U |
EVDC-E90U |
乙丙橡膠（或類似合成橡膠）絕緣聚氨酯護套電動汽車傳導充電系統用電纜 Ethylene propylene rubber (or similar synthetic rubber) insulated and polyurethanesheathed cable for electric vehicle conductive charging system |
|
EV-WDYJYJ |
EVDC-WDYJYJ |
低煙無鹵交聯聚烯烴絕緣低煙無鹵交聯聚烯烴護套電動汽車傳導充電系統用電纜 Low smoke halogen free cross-linked polyolefin insulated polyolefin sheathed and low smoke non-halogen cross-linked cable for electric vehicle conductive charging system |
|
EV-SS |
EVDC-SS |
熱塑性彈性體絕緣熱塑性彈性體護套電動汽車傳導充電系統用電纜 Thermoplastic Elastomer insulated and Thermoplastic Elastomer sheathed cable for electric vehicle conductive charging system |
|
EV-VV |
EVDC-VV |
聚氯乙烯絕緣聚氯乙烯護套電動汽車傳導充電系統用電纜 PVC insulated and PVC sheathed cables for electric vehicle conductive charging system |
|
EV-S90U |
EVDC-S90U |
熱塑性彈性體絕緣聚氨酯護套電動汽車傳導充電系統用電纜 Thermoplastic Elastomer insulated and polyurethane sheathed cable for electric vehicle conductive charging system |
|
EV-EFPF |
EVDC-EFPF |
乙丙橡膠（或類似合成橡膠）絕緣銅絲編織屏蔽氯丁橡膠（或類似材料）護套電動汽車傳導充電系統用電纜 Ethylene propylene rubber (or similar synthetic rubber) insulated copper wire weave shielded Chloroprene rubber (or similar material) sheathed cable for electric vehicle conductive charging system |
|
EV-E90UPU |
EVDC-E90UPU |
乙丙橡膠（或類似合成橡膠）絕緣銅絲編織屏蔽聚氨酯護套電動汽車傳導充電系統用電纜 Ethylene propylene rubber (or similar synthetic rubber) insulated copper wire woven shield polyurethane sheath cable for electric vehicle conductive charging system |
|
EV-WDYJYJPYJ |
EVDC-WDYJYJPYJ |
低煙無鹵交聯聚烯烴絕緣銅絲編織屏蔽低煙無鹵交聯聚烯烴護套電動汽車傳導充電系統用電纜 Low smoke halogen free cross-linked polyolefin insulated copper wire weave shielded cross-linked polyolefin sheathed and low smoke zero halogen cable for electric vehicle conductive charging system |
|
EV-SSPS |
EVDC-SSPS |
熱塑性彈性體絕緣銅絲編織屏蔽熱塑性彈性體護套電動汽車傳導充電系統用電纜 Thermoplastic Elastomer insulated copper wire woven shield and Thermoplastic Elastomer sheathed cable for electric vehicle conductive charging system |
|
EV-S90S90PU |
EVDC-S90S90PU |
熱塑性彈性體絕緣銅絲編織屏蔽聚氨酯護套電動汽車傳導充電系統用電纜 Insulated copper wire woven shield polyurethane Thermoplastic Elastomer sheathed cable for electric vehicle conductive charging system |
|
EV-VVPV |
EVDC-VVPV |
聚氯乙烯絕緣聚銅絲編織屏蔽氯乙烯護套電動汽車傳導充電系統用電纜 PVC insulated copper wire weave Shielded and PVC sheathed cable for electric vehicleconductive charging system |
額定電壓
交流：450/750V
直流：1.0kV
溫度范圍
推薦使用的環境溫度范圍：-40℃~ 50℃
正常運行時導體溫度和短路時（持續5S）導體溫度見下表
Recommend use temperature:-40℃~ 50℃
Conductor highest temperature at operating and the longest continued temperature at short circuit ,the highest temperature stated as below
|
絕緣材料 Insulation material |
護套材料 Sheath material |
溫度℃ temperature ℃ |
|||
|
導體允許溫度 conductor temperature |
電纜表面 Cable performance |
安裝和敷設install |
|||
|
長期 long term |
短路 short circuit |
||||
|
高 the highest |
高 the highest |
高 the highest |
低the highest |
||
|
E |
F |
60 |
200 |
50 |
-25 |
|
S |
S |
60 |
200 |
50 |
-25 |
|
S90 |
S90 |
90 |
250 |
50 |
-40 |
|
E90 |
U |
90 |
250 |
75 |
-40 |
|
S90 |
U |
90 |
250 |
75 |
-40 |
|
YJ |
YJ |
90 |
250 |
50 |
-25 |
|
V |
V |
90 |
250 |
50 |
-15 |
電纜的彎曲半徑應不小于電纜外徑的6倍。
Cable bending radius is not less than 6 times of the cable diameter
電纜結構
導體：第6類裸銅導體或鍍錫銅導體，熱固性絕緣材料導體采用鍍錫銅導體，熱塑性絕緣材料導體可采用裸銅導體。
絕緣：上表中所列的任一種擠包成型的化合物
內護：絕緣或護套材料的任一種
編織：裸圓銅線或鍍錫銅線編織層
外護套：上表中所列的任一種擠包成型的化合物
Cable structure:
Cable structure
Conductor:6th class conductor bare copper or tinned copper conductor, thermosetting insulation conductor tinned copper conductor, thermoplastic insulation conductor bare copper conductor can be used.
Insulation:any of the ones listed in the previous table extruded molding compounds
Inner sheath:insulating or any other sheath material
Braiding:Bare round copper wire or tinned copper wire braid
Outer sheath:Any of the ones listed in the previous table extruded molding compounds
450/750V交流充電系統用電纜結構表
450/750V AC charging system cable structure table
|
主線芯數×標稱截面積 mm2 Core x nominal section area |
絕緣厚度 標稱值 Mm Insulation nominal thickness |
編織屏蔽銅絲直徑標稱值 Mm braided shield wires diameter of nominal value |
護套厚度標稱值 mm Sheath thickness |
平均外徑 mm Outer Diameter |
||||
|
無總屏蔽型 Non-shield type |
有總屏蔽型 Shield type |
無總屏蔽型 Non-shield type |
有總屏蔽型 Shield type |
|||||
|
下限 Lower limit |
上限 Upper limit |
下限 Lower limit |
上限 Upper limit |
|||||
|
2×1 |
0.8 |
0.15 |
1.2 |
1.3 |
7.5 |
9.7 |
9.6 |
12.4 |
|
2×1.5 |
0.8 |
0.15 |
1.2 |
1.3 |
8.0 |
10.3 |
10.1 |
13.0 |
|
2×2.5 |
0.9 |
0.15 |
1.3 |
1.3 |
9.4 |
12.1 |
11.3 |
14.5 |
|
2×4 |
1.0 |
0.15 |
1.3 |
1.4 |
10.8 |
13.9 |
12.9 |
16.6 |
|
2×6 |
1.0 |
0.15 |
1.4 |
1.4 |
12.0 |
15.4 |
13.9 |
17.8 |
|
2×10 |
1.2 |
0.20 |
1.4 |
1.5 |
14.5 |
19.5 |
16.8 |
22.4 |
|
2×16 |
1.2 |
0.20 |
1.5 |
1.6 |
16.8 |
22.4 |
19.1 |
25.2 |
|
2×25 |
1.2 |
0.20 |
1.6 |
1.7 |
19.7 |
26.0 |
22.0 |
28.8 |
|
2×35 |
1.4 |
0.25 |
1.7 |
1.8 |
23.1 |
30.3 |
25.7 |
33.5 |
|
2×50 |
1.6 |
0.25 |
1.9 |
2.0 |
27.2 |
35.3 |
29.7 |
38.6 |
|
2×70 |
1.6 |
0.25 |
2.0 |
2.1 |
30.8 |
39.9 |
33.4 |
43.1 |
|
3×1 |
0.8 |
0.15 |
1.2 |
1.3 |
8.0 |
10.3 |
10.1 |
13.0 |
|
3×1.5 |
0.8 |
0.15 |
1.2 |
1.3 |
8.4 |
10.9 |
10.5 |
13.6 |
|
3×2.5 |
0.9 |
0.15 |
1.3 |
1.4 |
10.0 |
12.8 |
12.1 |
15.5 |
|
3×4 |
1.0 |
0.15 |
1.3 |
1.4 |
11.5 |
14.8 |
13.6 |
17.4 |
|
3×6 |
1.0 |
0.20 |
1.4 |
1.5 |
12.8 |
16.3 |
15.1 |
19.2 |
|
3×10 |
1.2 |
0.20 |
1.5 |
1.6 |
15.6 |
20.9 |
17.9 |
23.8 |
|
3×16 |
1.2 |
0.20 |
1.6 |
1.6 |
18.1 |
24.0 |
20.2 |
26.7 |
|
3×25 |
1.2 |
0.20 |
1.7 |
1.7 |
21.2 |
27.9 |
23.3 |
30.5 |
|
3×35 |
1.4 |
0.25 |
1.8 |
1.9 |
24.9 |
32.6 |
27.5 |
35.8 |
|
3×50 |
1.6 |
0.25 |
1.9 |
2.0 |
29.1 |
37.7 |
31.7 |
41.0 |
|
3×70 |
1.6 |
0.30 |
2.1 |
2.2 |
33.2 |
42.9 |
36.0 |
46.4 |
|
4×1 |
0.8 |
0.15 |
1.2 |
1.3 |
8.6 |
11.2 |
10.7 |
13.8 |
|
4×1.5 |
0.8 |
0.15 |
1.3 |
1.3 |
9.4 |
12.1 |
11.3 |
14.5 |
|
4×2.5 |
0.9 |
0.15 |
1.3 |
1.4 |
10.9 |
14.0 |
13.0 |
16.7 |
|
4×4 |
1.0 |
0.20 |
1.4 |
1.5 |
12.9 |
16.4 |
15.2 |
19.3 |
|
4×6 |
1.0 |
0.20 |
1.4 |
1.5 |
14.0 |
17.9 |
16.3 |
20.8 |
|
4×10 |
1.2 |
0.20 |
1.5 |
1.6 |
17.2 |
22.8 |
19.5 |
25.7 |
|
4×16 |
1.2 |
0.20 |
1.6 |
1.7 |
20.0 |
26.3 |
22.3 |
29.2 |
|
4×25 |
1.2 |
0.25 |
1.7 |
1.8 |
23.4 |
30.6 |
26.0 |
33.9 |
|
4×35 |
1.4 |
0.25 |
1.9 |
2.0 |
27.7 |
36.0 |
30.3 |
39.3 |
|
4×50 |
1.6 |
0.25 |
2.1 |
2.1 |
32.5 |
42.0 |
34.9 |
45.0 |
|
4×70 |
1.6 |
0.30 |
2.2 |
2.3 |
36.9 |
47.6 |
39.7 |
51.0 |
|
5×1 |
0.8 |
0.15 |
1.3 |
1.3 |
9.6 |
12.4 |
11.5 |
14.8 |
|
5×1.5 |
0.8 |
0.15 |
1.3 |
1.4 |
10.3 |
13.2 |
12.4 |
15.8 |
|
5×2.5 |
0.9 |
0.20 |
1.4 |
1.4 |
12.1 |
15.5 |
14.2 |
18.1 |
|
5×4 |
1.0 |
0.20 |
1.4 |
1.5 |
14.1 |
18.0 |
16.4 |
20.9 |
|
5×6 |
1.0 |
0.20 |
1.5 |
1.5 |
15.5 |
19.8 |
17.7 |
22.4 |
|
5×10 |
1.2 |
0.20 |
1.6 |
1.7 |
19.1 |
25.2 |
21.4 |
28.1 |
|
5×16 |
1.2 |
0.20 |
1.7 |
1.8 |
22.2 |
29.1 |
24.5 |
32.0 |
|
5×25 |
1.2 |
0.25 |
1.8 |
1.9 |
26.0 |
33.9 |
28.6 |
37.1 |
|
5×35 |
1.4 |
0.25 |
2.0 |
2.1 |
30.8 |
39.9 |
33.4 |
43.1 |
|
5×50 |
1.6 |
0.30 |
2.2 |
2.3 |
36.1 |
46.5 |
38.9 |
50.0 |
|
5×70 |
1.6 |
0.30 |
2.3 |
2.4 |
40.9 |
52.5 |
43.7 |
56.0 |
交流充電電纜線芯顏色及功能說明
AC charging cable core colours and feature description
|
線芯編號 Core no. |
供電和車輛接口標識 Power supply and vehicle interface identifier |
線芯顏色 Wire color |
功能 function |
|
1 |
L |
棕 blown |
交流電源 AC power |
|
2 |
N |
藍 blue |
中線 etnaer service line |
|
3 |
PE |
黃/綠 yellow/ green |
保護接地 protective grounding wire |
|
4 |
CP |
紅 red |
控制確認 control to confirm |
|
5 |
CC |
白 white |
充電連接確認 charging connection confirmation |
|
6 |
NC1 |
黑 black |
備用擴展 alternate extensions |
|
7 |
NC2 |
黑或棕 black or blown |
備用擴展 alternate extensions |
1.0kV直流充電系統用電纜結構表
1.0KV AC charging system cable structure table
|
主線芯數×標稱截面積 mm2 Corex nominal section area |
絕緣厚度 標稱值 Mm Insulation nominal thickness |
編織屏蔽銅絲直徑標稱值 Mm braided shield wires diameter of nominal value |
護套厚度標稱值 mm Sheath thickness |
平均外徑 mm Out diameter |
||||
|
無總屏蔽型 Non-shield type |
有總屏蔽型 Shield type |
無總屏蔽型 Non-shield type |
有總屏蔽型 Shield type |
|||||
|
下限 Lower limit |
上限 Upper limit |
下限 Lower limit |
上限 Upper limit |
|||||
|
2×10 |
1.2 |
0.20 |
1.5 |
1.6 |
16.4 |
22.9 |
17.9 |
24.8 |
|
2×16 |
1.2 |
0.20 |
1.6 |
1.6 |
18.9 |
26.0 |
20.2 |
27.7 |
|
2×25 |
1.2 |
0.25 |
1.7 |
1.8 |
22.0 |
29.8 |
23.7 |
32.1 |
|
2×35 |
1.4 |
0.35 |
1.8 |
1.9 |
25.7 |
34.5 |
28.0 |
37.3 |
|
2×50 |
1.6 |
0.35 |
2.0 |
2.0 |
30.0 |
39.9 |
32.1 |
42.5 |
|
2×70 |
1.6 |
0.30 |
2.1 |
2.2 |
34.0 |
44.8 |
36.0 |
47.4 |
|
2×95 |
1.8 |
0.30 |
2.2 |
2.3 |
38.1 |
50.0 |
40.1 |
52.5 |
|
2×120 |
1.8 |
0.30 |
2.4 |
2.4 |
41.9 |
54.8 |
43.8 |
57.1 |
|
2×150 |
2.0 |
0.30 |
2.5 |
2.6 |
46.7 |
60.8 |
48.4 |
62.8 |
|
2×185 |
2.2 |
0.30 |
2.7 |
2.8 |
51.4 |
66.7 |
53.1 |
68.7 |
|
2×240 |
2.4 |
0.30 |
2.9 |
3.0 |
58.1 |
75.0 |
59.7 |
77.0 |
直流充電電纜線芯顏色及功能說明
DC charging cable core colours and feature descriptions
|
線芯編號 core no |
供電和車輛接口標識 Power supply and vehicle interface identifier |
線芯顏色 Core color |
功能 function |
|
1 |
DC |
棕 brown |
直流電源正 AC power positive |
|
2 |
DC- |
藍 blue |
直流電源負 DC power negative |
|
3 |
PE |
黃/綠 yellow/ green |
保護接地 protective grounding |
|
4 |
S |
紅 red |
充電通信CAN-H charging communication |
|
5 |
S- |
白 white |
充電通信CAN-L charging communication |
|
6 |
CC1 |
黑 black |
充電連接確認1 charging connection confirmation 1 |
|
7 |
CC2 |
黑/棕 black/brown |
充電連接確認2 charging connection confirmation 2 |
|
8 |
A |
紅 red |
低壓輔助電源正 Low voltage auxiliary power supply positive |
|
9 |
A- |
白 white |
低壓輔助電源負 Low voltage auxiliary power supply negative |
