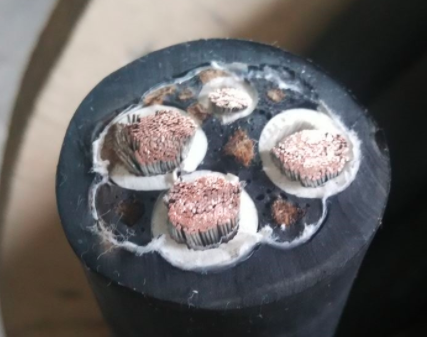

QXRF QXRFP QXFR QXFRP電源軟電纜
電源電纜適用于動力傳輸，控制電纜適用于儀器儀表及電信設備的控制
■2 產品標準
參照國際電工會員會IEC502、IEC227和國標GB/T12706.1-2002
■3 使用特征
1）額定電壓U0/V為450V/750V及以下；
2）蕞低使用環境溫度為-40℃，線芯長期工作溫度為 105℃；
3）電纜允許彎曲半徑，不小于電纜平均外徑上限值的40倍。
4）特點：該產品采用改良的復合塑料作絕緣，特種復合特軟塑料作護套，具有電氣性能優越，舒緩老化、耐寒、耐熱老化、耐酸堿等性能，在低溫條件下能保持良好的柔軟性。
■4 產品型號及名稱
QXRF 鍍錫銅線芯特種復合塑料絕緣特種復合塑料護套軟電纜
QXRFZ 鍍錫銅線芯特種復合塑料絕緣特種復合阻燃軟塑料護套軟電纜
QXRFP 鍍錫銅線芯特種復合塑料絕緣特種復合軟塑料護套屏蔽軟電纜
QXRFPZ鍍錫銅線芯特種復合塑料絕緣特種復合軟塑料阻燃護套屏蔽電纜
■5 電纜規格
電源電纜
|
芯數 |
導體標稱截面mm2 |
芯數 |
導體標稱截面mm2 |
|
1 |
1.5～300 |
4 |
1.5～150 |
|
2 |
1.5～150 |
3 1 |
1.5～150 |
|
3 |
1.5～150 |
控制電纜
|
芯數 |
導體標稱截面mm2 |
芯數 |
導體標稱截面mm2 |
|
0.2 |
2～37 |
1.5 |
2～37 |
|
0.3 |
2～5 |
2.5 |
2～19 |
|
0.4 |
2～5 |
4 |
2～5 |
|
0.5 |
2～37 |
6 |
2～5 |
|
1.0 |
2～37 |
10 |
2～5 |
■6QXRF電源電纜 性能指標：
1.導電線芯結構及導體直流電阻
|
導體標稱截面mm2 |
導體結構 根/單位直徑 mm |
20℃導體蕞大直流阻 Ω/Km |
|
0.2 |
12/0.15 |
95.0 |
|
0.3 |
16/0.15 |
71.2 |
|
0.4 |
23/0.15 |
49.6 |
|
0.5 |
28/0.20 |
40.1 |
|
0.75 |
24/0.20 |
26.7 |
|
1.0 |
32/0.20 |
20.0 |
|
1.5 |
48/0.20 |
13.7 |
|
2.5 |
77/0.20 |
8.21 |
|
4.0 |
126/0.20 |
5.09 |
|
6.0 |
196/0.20 |
3.39 |
|
10 |
315/0.20 |
1.95 |
|
16 |
513/0.20 |
1.24 |
|
25 |
798/0.20 |
0.975 |
|
35 |
1110/0.20 |
0.565 |
|
50 |
1591/0.20 |
0.393 |
|
70 |
2220/0.20 |
0.227 |
|
95 |
1332/0.30 |
0.210 |
|
120 |
1702/0.30 |
0.164 |
|
150 |
2109/0.40 |
0.130 |
2 試驗電壓：電纜經受交流50Hz 2500V電壓試驗5分鐘不擊穿
■7QXRF電源電纜 電纜結構尺寸：
7.1電源電纜（QXRF、QXRFZ）
|
標稱截面 mm2 |
絕緣厚度 mm |
外護套厚度 mm |
電纜平均上限 mm |
||||||
|
1芯 |
2芯 |
3芯 |
4芯 |
1芯 |
2芯 |
3芯 |
4芯 |
||
|
1.5 |
0.7 |
1.2 |
1.5 |
1.5 |
1.5 |
6.8 |
11.2 |
11.6 |
12.4 |
|
2.5 |
0.8 |
1.2 |
1.5 |
1.5 |
1.5 |
7.4 |
12.4 |
14.0 |
15.0 |
|
4 |
0.8 |
1.4 |
1.5 |
1.8 |
1.8 |
8.6 |
14.2 |
15.6 |
17.0 |
|
6 |
0.8 |
1.4 |
1.8 |
1.8 |
1.8 |
9.6 |
16.4 |
17.3 |
19.0 |
|
10 |
1.0 |
1.5 |
1.8 |
2.0 |
2.0 |
11.2 |
19.2 |
21.0 |
24.2 |
|
16 |
1.0 |
1.5 |
2.0 |
2.0 |
2.2 |
12.6 |
23.0 |
24.8 |
27.0 |
|
25 |
1.2 |
1.6 |
2.2 |
2.2 |
2.2 |
13.6 |
26.5 |
28.5 |
31.0 |
|
35 |
1.2 |
1.6 |
2.2 |
2.4 |
2.4 |
16.2 |
29.8 |
32.2 |
36.2 |
|
50 |
1.4 |
1.6 |
2.4 |
2.4 |
2.6 |
18.2 |
34.2 |
37.0 |
40.4 |
|
70 |
1.4 |
1.8 |
2.6 |
2.6 |
2.8 |
20.8 |
38.8 |
41.8 |
45.8 |
|
95 |
1.6 |
1.8 |
2.8 |
2.8 |
3.0 |
23.0 |
43.8 |
47.3 |
52.0 |
|
120 |
1.6 |
1.8 |
2.8 |
3.0 |
3.2 |
25.0 |
48.0 |
50.8 |
57.0 |
|
標稱截面 mm2 |
絕緣厚度mm |
外護套厚度 mm |
電纜平均外徑 mm |
||
|
主線 |
負線 |
3芯 |
4芯 |
||
|
3×2.5 1×1.5 |
0.8 |
0.7 |
1.5 |
10.8 |
13.4 |
|
3×4 1×2.5 |
0.8 |
0.8 |
1.8 |
13.5 |
16.2 |
|
3×6 1×4 |
0.8 |
0.8 |
1.8 |
15.5 |
18.4 |
|
3×10 1×6 |
1.0 |
0.8 |
2.0 |
19.0 |
22.0 |
|
3×16 1×6 |
1.0 |
0.8 |
2.0 |
22.8 |
26.0 |
|
3×25 1×10 |
1.2 |
1.0 |
2.2 |
26.5 |
29.8 |
|
3×35 1×10 |
1.2 |
1.0 |
2.4 |
30.5 |
34.0 |
|
3×50 1×16 |
1.4 |
1.0 |
2.6 |
35.6 |
39.0 |
|
3×70 1×25 |
1.4 |
1.2 |
2.8 |
40.5 |
44.5 |
|
3×95 1×35 |
1.6 |
1.2 |
3.0 |
46.4 |
50.5 |
|
3×120 1×35 |
1.6 |
1.2 |
3.2 |
50.8 |
55.0 |
|
3×150 1×50 |
1.8 |
1.4 |
3.2 |
55.8 |
60.0 |
7.2 控制電纜QXRF電源電纜
|
芯數×標稱 截面 mm2 |
絕緣 厚度mm |
護套 厚度mm |
蕞大 外徑 mm |
芯數×標稱 截面 mm2 |
絕緣 厚度 mm |
護套 厚度mm |
蕞大 外徑mm |
|
2×0.2 |
0.4 |
1.0 |
6.5 |
10×0.2 |
0.4 |
1.2 |
11.1 |
|
2×0.3 |
0.5 |
1.0 |
7.0 |
10×0.5 |
0.6 |
1.2 |
12.5 |
|
2×0.4 |
0.6 |
1.2 |
7.6 |
10×0.75 |
0.6 |
1.2 |
13.5 |
|
2×0.5 |
0.6 |
1.2 |
8.0 |
10×1.0 |
0.6 |
1.5 |
15.0 |
|
2×0.75 |
0.6 |
1.2 |
8.4 |
10×1.5 |
0.7 |
1.5 |
17.0 |
|
2×1.0 |
0.6 |
1.2 |
8.8 |
10×2.5 |
0.8 |
1.5 |
19.5 |
|
2×1.5 |
0.7 |
1.2 |
10.2 |
||||
|
2×2.5 |
0.8 |
1.2 |
11.7 |
12×0.2 |
0.4 |
1.2 |
11.5 |
|
2×6 |
0.8 |
1.2 |
13.9 |
12×0.5 |
0.6 |
1.2 |
13.0 |
|
2×10 |
1.0 |
1.5 |
18.4 |
12×0.75 |
0.6 |
1.2 |
14.5 |
|
12×1.0 |
0.6 |
1.5 |
15.5 |
||||
|
3×0.2 |
0.4 |
1.0 |
7.0 |
12×1.5 |
0.7 |
1.5 |
17.5 |
|
3×0.3 |
0.5 |
1.0 |
7.6 |
12×2.5 |
0.8 |
1.5 |
20.5 |
|
3×0.4 |
0.6 |
1.2 |
8.2 |
||||
|
3×0.5 |
0.6 |
1.2 |
8.6 |
12×0.2 |
0.4 |
1.2 |
12.2 |
|
3×0.75 |
0.6 |
1.2 |
8.5 |
12×0.5 |
0.6 |
1.2 |
13.5 |
|
3×1.0 |
0.6 |
1.2 |
9.0 |
12×0.75 |
0.6 |
1.5 |
15.0 |
|
3×1.5 |
0.7 |
1.2 |
10.5 |
12×1.0 |
0.6 |
1.5 |
16.0 |
|
3×2.5 |
0.8 |
1.2 |
12.5 |
12×1.5 |
0.7 |
1.5 |
18.0 |
|
12×2.5 |
0.8 |
1.5 |
21.0 |
||||
|
4×0.2 |
0.4 |
1.0 |
7.5 |
||||
|
4×0.3 |
0.5 |
1.0 |
8.0 |
16×0.2 |
0.4 |
1.2 |
13.0 |
|
4×0.4 |
0.6 |
1.2 |
8.5 |
16×0.5 |
0.6 |
1.5 |
15.0 |
|
4×0.5 |
0.6 |
1.2 |
9.2 |
16×0.75 |
0.6 |
1.5 |
16.0 |
|
4×0.75 |
0.6 |
1.2 |
9.6 |
16×1.0 |
0.6 |
1.5 |
17.0 |
|
4×1.0 |
0.6 |
1.2 |
10.0 |
16×1.5 |
0.7 |
1.5 |
19.0 |
|
4×1.5 |
0.7 |
1.2 |
11.5 |
16×2.5 |
0.8 |
1.7 |
23.0 |
|
4×2.5 |
0.8 |
1.2 |
13.0 |
||||
|
19×0.2 |
0.4 |
1.2 |
13.0 |
||||
|
5×0.2 |
0.4 |
1.0 |
7.8 |
19×0.5 |
0.6 |
1.5 |
15.5 |
|
5×0.3 |
0.5 |
1.0 |
8.2 |
19×0.75 |
0.6 |
1.5 |
16.5 |
|
5×0.4 |
0.6 |
1.2 |
8.8 |
19×1.0 |
0.6 |
1.5 |
17.5 |
|
5×0.5 |
0.6 |
1.2 |
9.4 |
19×1.5 |
0.7 |
1.5 |
20.0 |
|
5×0.75 |
0.6 |
1.2 |
10.5 |
19×2.5 |
0.8 |
1.5 |
24.0 |
續表
|
芯數×標稱 截面 mm2 |
絕緣厚度mm |
護套厚度mm |
蕞大 外徑 mm |
芯數×標稱 截面 mm2 |
絕緣 厚度mm |
護套 厚度mm |
蕞大 外徑mm |
|
5×1.0 |
0.6 |
1.2 |
11.0 |
||||
|
5×1.5 |
0.7 |
1.2 |
12.0 |
24×0.2 |
0.4 |
1.5 |
16.2 |
|
5×2.5 |
0.8 |
1.5 |
14.5 |
24×0.5 |
0.6 |
1.5 |
17.5 |
|
24×0.75 |
0.6 |
1.5 |
19.0 |
||||
|
7×0.2 |
0.4 |
1.2 |
8.8 |
24×1.0 |
0.6 |
1.5 |
20.0 |
|
7×0.5 |
0.6 |
1.2 |
10.5 |
24×1.5 |
0.7 |
1.7 |
23.5 |
|
7×0.75 |
0.6 |
1.2 |
11.5 |
0.4 |
|||
|
7×1.0 |
0.6 |
1.2 |
13.0 |
30×0.2 |
0.6 |
1.5 |
16.9 |
|
7×1.5 |
0.7 |
1.2 |
16.0 |
30×0.5 |
0.6 |
1.5 |
18.5 |
|
7×2.5 |
0.8 |
1.5 |
30×0.75 |
0.6 |
1.5 |
20.0 |
|
|
30×1.0 |
1.7 |
21.5 |
|||||
|
8×0.2 |
0.4 |
1.2 |
9.5 |
||||
|
8×0.5 |
0.6 |
1.2 |
11.5 |
||||
|
8×0.75 |
0.6 |
1.2 |
12.0 |
36×0.2 |
0.4 |
1.5 |
17.3 |
|
8×1.0 |
0.6 |
1.2 |
13.0 |
36×0.5 |
0.6 |
1.5 |
20.0 |
|
8×1.5 |
0.7 |
1.2 |
15.0 |
36×0.75 |
0.6 |
1.7 |
21.5 |
|
8×2.5 |
0.8 |
1.5 |
17.5 |
2×6 2×1.0 |
0.8,0.6 |
1.5 |
15.2 |
